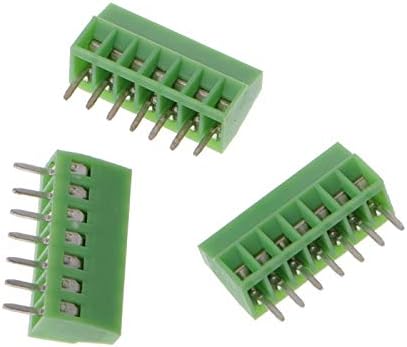

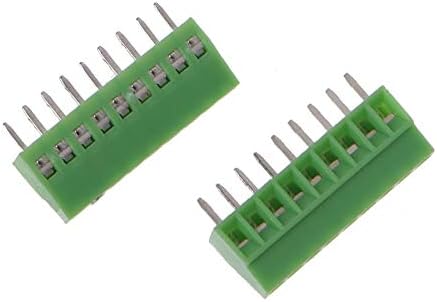

Davitu Electrical Equipments Provides – 10 Pcs 2Pin-10Pin Screw PCB Mounted Terminal Blocks Connector 2.54mm Pitch J6PD – (Pins: 10P)
$18.79
Worth: $18.79
(as of May 30,2021 19:26:18 UTC – Particulars)
Specs:
Sort: 2/3/4/5/6/7/8/9/10 Pin
Materials:
Screws: M1.6, Metal, Ni plated
Pin header: Brass, Tin plated
Wire cage: Brass, Tin plated
Housing: PA66, UL94V-0
Rated Voltage: 150V
Rated Present: 6A
Withstanding Voltage: AC 1250V/1 Min
Wire Vary: 24-12 AWG
Temp. Vary: -40â-105â
MAX Soldering: 250â for five sec.
Torque: 0.1Nm (0.88lb.in)
Strip Size: 5-6mm/0.2-0.24″
Pitch: 2.54mm/0.1″
Amount: 10 Pcs/1 Set
Be aware:
Please permit 1-3mm error as a result of handbook measurement. pls be sure to don’t thoughts earlier than you bid
Because of the distinction between totally different displays, the image could not replicate the precise shade of the merchandise. Thanks!
No Retail Bundle
Bundle consists of:
10 x Terminal Blocks
Merchandise specifics:
Mannequin quantity: J6PD1AA300061-2
Pins: 10P
Bundle Contains: 10 x Terminal Blocks |
Mannequin quantity: J6PD1AA300061-2
